Color
Natural
Orientation
Right-Hand
Product Name
American Performer Stratocaster Neck, 22 Jumbo Frets, 9.5" Radius, Rosewood
Series
American Performer

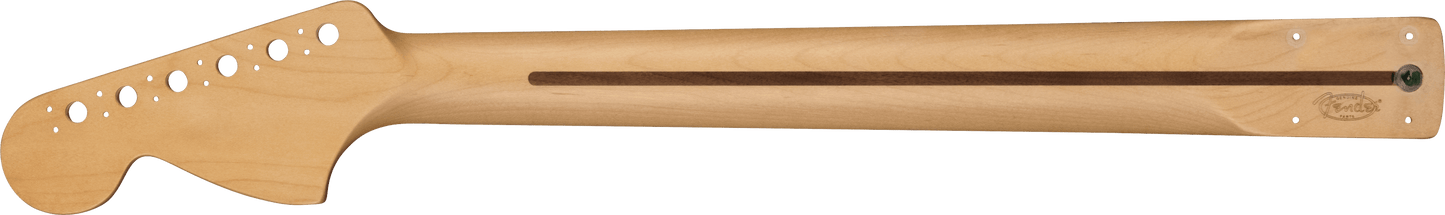

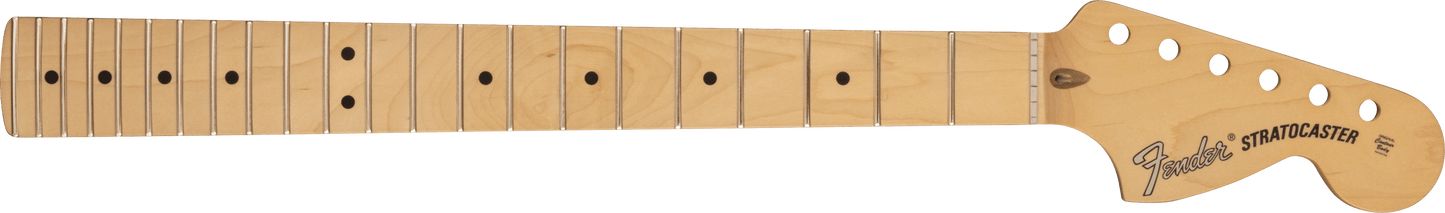

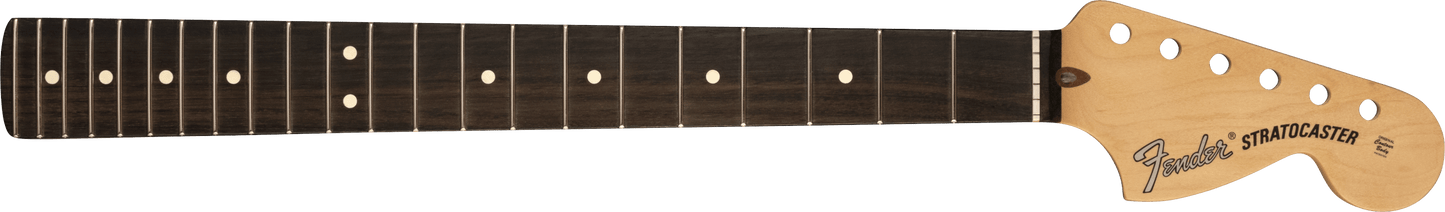

American Performer Strat® Neck, 22 Jumbo Frets, 9.5" Radius
Regular price
589,00 €
Regular price
589,00 €
589,00 €
Sale price
Unit price
per
inc. VAT*
American Performer Strat® Neck, 22 Jumbo Frets, 9.5" Radius
American Performer Strat® Neck, 22 Jumbo Frets, 9.5" Radius
Regular price
589,00 €
Regular price
589,00 €
589,00 €
Sale price
Unit price
per
inc. VAT*
Couldn't load pickup availability
Shipping & Returns
Free shipping on orders over 100€. Delivery Times: Standard 2-5 Days, Express 1-3 Days. Learn more
Return or exchange your purchase for any reason within 30 days of receipt. Learn more
Details
Summary
Overview
Crafted in the same facility as our U.S.-made instruments, the American Performer Stratocaster® Neck works well with almost any playing style. Features include our comfortable "Modern C" neck profile with a satin urethane finish that give it a smooth, fast playing feel. A large, '70's era headstock adds mass and sustain and 22 jumbo frets make it easier to achieve wide, expressive bends.
This replacement neck is for a Fender® or Squier® by Fender guitar.
Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures. Your local FMIC Authorized Service Center can install genuine replacement necks; find Authorized Service Center locations near you in the "Support" section of fender.com.
Overview
Features
- Maple neck w/ walnut stripe

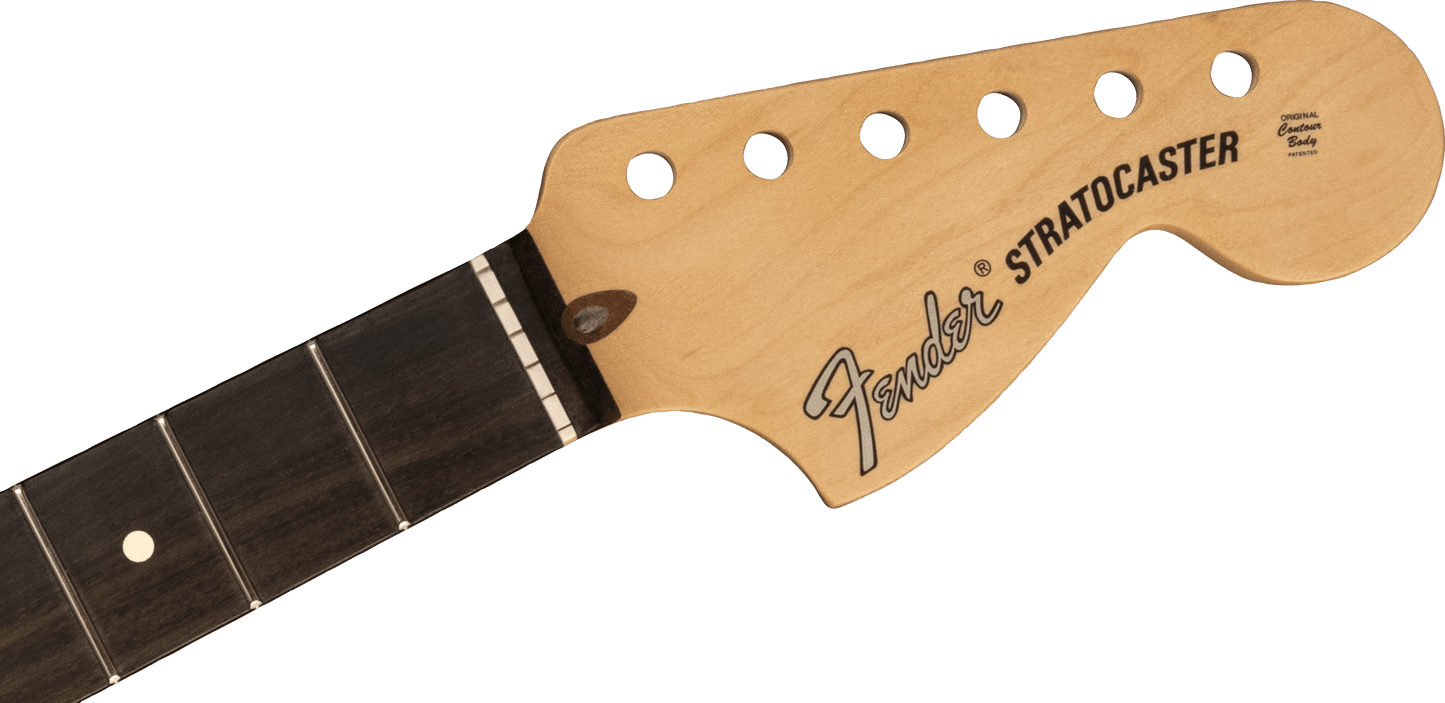

- Large '70s headstock
- Maple or rosewood fingerboard with 9.5" radius
- 22 jumbo frets
- Pre-slotted synthetic bone nut
- Six two-guide-pin tuning machine holes
General
Hardware
Tuner Mounting Config
Dual Guide Pin
Measurements
Fret Size
Jumbo
Fret Wire Dimensions
0.110" (H) x 0.055" (W)
Headstock Thickness
.404” (10.26 mm)
Peg Hole Diameter
.404” (10.26 mm)
Scale Length
25.5" (648 mm)
Neck
Fingerboard Material
Rosewood
Fingerboard Radius
9.5" (241 mm)
Neck Finish
Satin Urethane
Neck Material
Maple with Walnut Stripe
Neck Mounting
4-Bolt
Neck Shape
Modern "C"
Neck Thickness
1st Fret - .820” (20.82 mm), 12th Fret - .870” (22.09 mm)
Number of Frets
22
Nut Material
Synthetic Bone
Nut Width
1.685" (42.8 mm)
Position Inlays
White Dot
Side Dots
White
String Nut
Synthetic Bone
Truss Rod
Single Action, Head Adjust
Truss Rod Nut
1/8" Hex Adjustment
General
Color
Natural
Orientation
Right-Hand
Product Name
American Performer Stratocaster Neck, 22 Jumbo Frets, 9.5" Radius, Maple
Series
American Performer
Hardware
Tuner Mounting Config
Dual Guide Pin
Measurements
Fret Size
Jumbo
Fret Wire Dimensions
0.110" (H) x 0.055" (W)
Headstock Thickness
.404” (10.26 mm)
Peg Hole Diameter
.404” (10.26 mm)
Scale Length
25.5" (648 mm)
Neck
Fingerboard Material
Maple
Fingerboard Radius
9.5" (241 mm)
Neck Finish
Satin Urethane
Neck Material
Maple with Walnut Stripe
Neck Mounting
4-Bolt
Neck Shape
Modern "C"
Neck Thickness
1st Fret - .820” (20.82 mm), 12th Fret - .870” (22.09 mm)
Number of Frets
22
Nut Material
Synthetic Bone
Nut Width
1.685" (42.8 mm)
Position Inlays
Black Dot
Side Dots
Black
String Nut
Synthetic Bone
Truss Rod
Single Action, Head Adjust
Truss Rod Nut
1/8" Hex Adjustment
